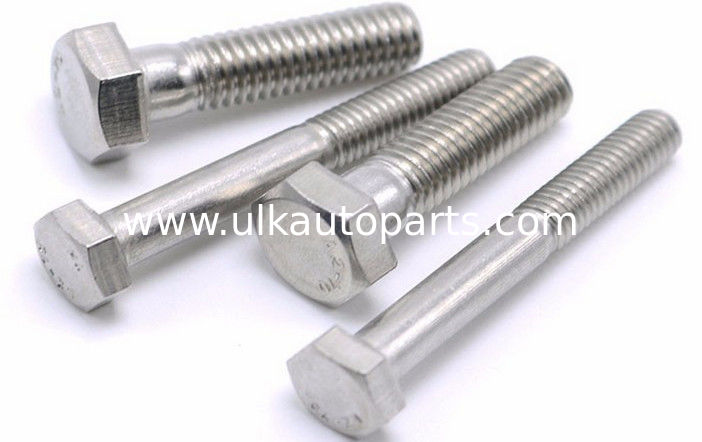

F61 Super Duplex Stainless Steel Hex Bolt

F61 Super Duplex Stainless Steel Hex Bolt
F61 Super Duplex Stainless Steel Hex Bolt

Large Image :  F61 Super Duplex Stainless Steel Hex Bolt Get Best Price

Product Details:
Place of Origin: China
Brand Name: ULK
Certification: ISO9001 & TS/16949
Model Number: M1.6-M72
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Packaging Details: Cartons + Plywood cases
Delivery Time: 5-7 Days
Payment Terms: T/T, L/C, D/P, D/A, Paypal, Western Union
Supply Ability: 100000pcs per day
Contact Now
Detailed Product Description



Product Name F61 Super Duplex Stainless Steel Hex Bolt
Material F61
Size M1.6 - M72
Surface Bright
Packaging Details

Cartons + Plywood cases

Also can be packed as clients' requirements.
Delivery Within 15 days
OEM/ODM Available
Sample Available, 3-5 days after receiving payment

F61 Super Duplex Stainless Steel Hex Bolt 0

DIMENSION OF DIN931 HEX BOLT
d P
(mm)

b

(mm)

ds
(mm)



K
(mm)



 S
(mm)
L≤125 125<L≤200 200<L min max min max min max
M1.6 0.35 9 15 28 1.35 1.6 0.9 1.3 2.9 3.2
M2 0.4 10 16 29 1.75 2 1.2 1.6 3.7 4
M2.5 0.45 11 17 30 2.25 2.5 1.5 1.9 4.7 5
M3 0.5 12 18 31 2.75 3 1.8 2.2 5.2 5.5
M3.5 0.6 13 19 32 3.2 3.5 2.2 2.6 5.7 6
M4 0.7 14 20 33 3.7 4 2.6 3 6.64 7
M5 0.8 16 22 35 4.7 5 2.76 3.24 7.64 8
M6 1 18 24 37 5.7 6 3.76 4.24 9.64 10
M8 1.25 22 28 41 7.64 8 5.06 5.54 12.57 13
M10 1.5 26 32 45 9.64 10 6.11 6.69 15.57 16
M12 1.75 30 36 49 11.57 12 7.21 7.79 17.57 18
M14 2 34 40 53 13.57 14 8.51 9.09 20.16 21
M16 2 38 44 57 15.57 16 9.71 10.29 23.16 24
M18 2.5 42 48 61 17.57 18 11.15 11.85 26.16 27
M20 2.5 46 52 65 19.48 20 12.15 12.85 29.16 30
M22 2.5 50 56 69 21.48 22 13.65 14.35 33 34
M24 3 54 60 73 23.48 24 14.65 15.35 35 36
M27 3 60 66 79 26.48 27 16.65 17.35 40 41
M30 3.5 66 72 85 29.48 30 18.28 19.12 45 46
M33 3.5   78 91 32.38 33 20.58 21.42 49 50
M36 4   84 97 35.38 36 22.08 22.92 53.8 55
M39 4   90 103 38.38 39 24.58 25.42 58.8 60
M42 4.5   96 109 41.38 42 25.58 26.42 63.1 65
M45 4.5   102 115 44.38 45 27.58 28.42 68.1 70
M48 5   108 121 47.38 48 29.58 30.42 73.1 75
M52 5   116 129 51.26 52 32.5 33.5 78.1 80
M56 5.5     137 55.26 56 34.5 35.5 82.8 85
M60 5.5     145 59.26 60 37.5 38.5 87.8 90



F61 Super Duplex Stainless Steel Hex Bolt 1
