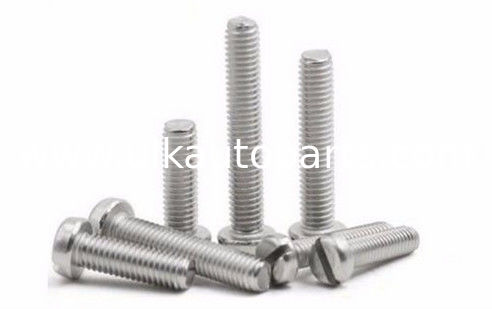

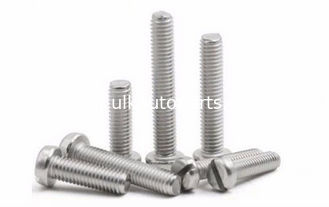

Stainless Steel Slotted Cheese Head Screw

Stainless Steel Slotted Cheese Head Screw
Stainless Steel Slotted Cheese Head Screw

Large Image :  Stainless Steel Slotted Cheese Head Screw Get Best Price

Product Details:
Place of Origin: China
Brand Name: ULK
Certification: ISO9001 & TS/16949
Model Number: M5
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Packaging Details: Cartons + Plywood cases
Delivery Time: 5-7 Days
Payment Terms: T/T, L/C, D/P, D/A, Paypal, Western Union
Supply Ability: 100000PCS PER DAY
Contact Now
Detailed Product Description

Product Name ISO 1207 UNS S31600 Stainless Steel Slotted Cheese Head Screw
Material SS304/SS316/SS316L/SS310Setc.
Size M1 - 10
Surface Bright
Packaging Details

Cartons + Plywood cases

Also can be packed as clients' requirements.
Delivery Within 15 days
OEM/ODM Available
Sample Available, 3-5 days after receiving payment

Stainless Steel Slotted Cheese Head Screw 0

DIMENSION OF SLOTTED CHEESE HEAD SCREW
d M1 M1.2 M1.4 M1.6 M1.8 M2 M2.5 M3 M3.5 M4 M5 M6 M8 M10
Thread Pitch P 0.25 0.25 0.3 0.35 0.35 0.4 0.45 0.5 0.6 0.7 0.8 1 1.25 1.5
b 25 25 25 25 25 25 25 25 38 38 38 38 38 38
dk max 2 2.3 2.6 3 3.4 3.8 4.5 5.5 6 7 8.5 10 13 16
min 1.86 2.16 2.46 2.86 3.22 3.62 4.32 5.32 5.82 6.78 8.28 9.78 12.73 15.73
k max 0.7 0.8 0.9 1 1.2 1.3 1.6 2 2.4 2.6 3.3 3.9 5 6
min 0.56 0.66 0.76 0.68 1.06 1.16 1.46 1.86 2.26 2.46 3.12 3.6 4.7 5.7
n max 0.45 0.5 0.5 0.6 0.6 0.7 0.8 1 1.2 1.51 1.51 1.91 2.31 2.81
min 0.31 0.36 0.36 0.46 0.46 0.56 0.66 0.86 1.06 1.26 1.26 1.66 2.06 2.56
t 0.25 0.3 0.4 0.45 0.5 0.6 0.7 0.85 1 1.1 1.3 1.6 2 2.4
